Dump Semi Trailer

Loading Capacity:30Tons - 60Tons Overall Dimension:10000x2500x3930 mm Axle Number:2 Axles / 3 Axles Kingpin Size:2.0 Inch / 3.5 Inch
  • Professional Service, Competitive Price.
  • Powerful Engine, Advanced Technologies.
  • Stable and Reliable Quality, Great Performance.
    Model Dump / Tipper Semi Trailer

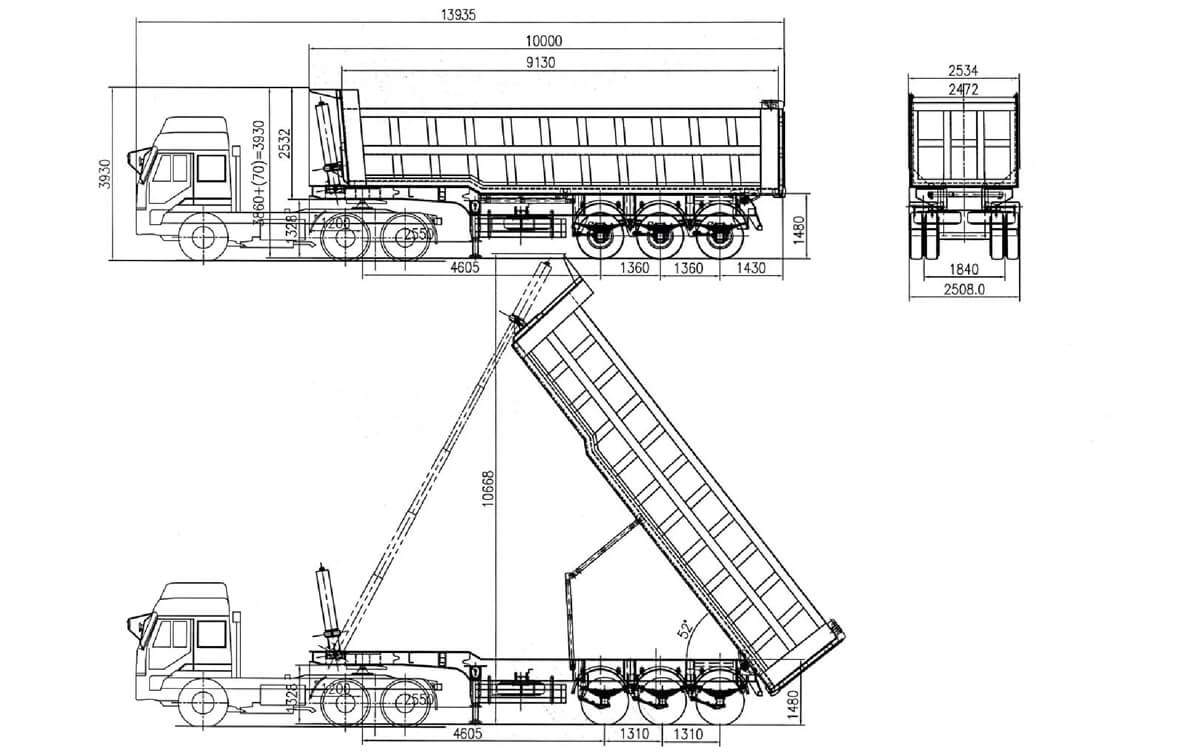

    Dimension 10000 x 2500 x 3930mm(Outside); 9000 x 2300 x 1700mm(Inside)
    Curb Weight 15Tons
    Loading Capacity 60 Tons (35CBM)
    Cargo Body Bottom 10mm, side 8mm
    Lifting System Full set of HYVA hydraulic lifting cylinder
    Kingpin JOST 2.0 / 3.5 Inch
    Landing Gear JOST 28 Tons
    Main Beam Height 500mm, Top flange 14mm, Web 8mm, Bottom flange 16mm
    Side Beam 18mm steel channel
    Suspension America type mechanical suspension
    Spring Leaf 90mm x 13mm x 10 layers
    Axles FUWA Brand, 13Tons or 16Tons
    Tires 12.00R20 or 315/80R22.5
    Brake Chamber T30/30 + T30 spring brake chamber, one piece of 45L air tanks
    Electrical 24V
    Tool Box 1000 x 500 x 500 mm
